44m Working Height 22m Turning Diameter Aerial Ladder Working Platform Fire Truck

Name: 44m Working Height 22m Turning Diameter Aerial Ladder Working Platform Fire Truck
Brand: CIMC
Price: 1 USD

Wholesale 44m Working Height 22m Turning Diameter Aerial Ladder Working Platform Fire Truck from china suppliers

Brand Name : CIMC

Model Number : DG46

Certification : ISO9001/CCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1UNIT

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 150 days

Packaging Details : roll roll

seats : 2

Net weight : 9230kg

Wheelbase : 1995+4205+1370mm

Engine Power : 320/435(kw/hp)

Generator battery : 12V x 2

Working height : 44m

Driving : 6x4

Turning Diameter : 22m

Product name : Aerial Ladder Working Platform Fire Truck

Contact Now

44m Working Height 22m Turning Diameter Aerial Ladder Working Platform Fire Truck

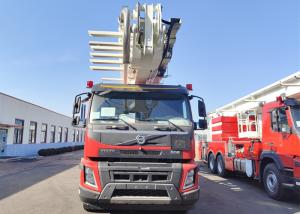

Aerial ladder working platform fire truck - the truck is equipped with a hydraulic lifting platform for firefighters to climb to fight high-rise buildings, tall facilities, oil tanks and other fires, rescue trapped people, rescue valuable materials and complete other rescue tasks.

Vehicle	Dimension (L×W×H)	10500×2500×3980 (mm)
	Gross weight	32100 (kg)
	Complete vehicle shipping mass	31950(kg)
	Seat (inc. driver)	2
	Engine Power	320/435(kw/hp)
Chassis	Manufacturer	Mercedes Benz
	Model	Actros3344
	Driving	6×4
	Cabin	Single cab
	Wheel base	4500+1350 (mm)
	Net weight	9230Kg
	Max. loading	23700Kg
	Max. running speed	90Km/h
	Min. turning diameter	＜22.3m
	Engine type	V type, 6 cylinder in line turbo, middle cool engine
	Model	Mercedes OM501 LA
	Max. engine power	320Kw/ 1800r/min
	Maximum torque	2100N.M/1080rpm
	Emission standard	Euro V
	Clutch	Monolithic, Dry
	Transmission	Mercedes G240-16 fully synchronized
	Full power PTO	NMV200(N56)i=1.48(speedup), Full power
	PTO of transmission	MB-NA121-1b(N04)i=1.03/1.24 (speed up)
Boom Structure	Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel
	Max. working height	44m
	Max. working range	21m
	Main boom action angle	-3°～83°
	Folding boom action angle	0°～180°
	Turntable slewing	Infinite rotation 360°
	Rated Pump flow	70L/s@1.7Mpa
	Boom extending time	≤140s
	Outrigger extending time	≤35s
	Hydraulic system pressure	21MPa
	Max. wind velocity	12.5m/s
	Outrigger longitudinal and transverse	5600×5300mm

44m Working Height 22m Turning Diameter Aerial Ladder Working Platform Fire Truck
